Casa /Produtos/Motor de arranque elétrico/Modern custom car suv 12v waterproof left right electric dc side step pedal motors auto power running board motor

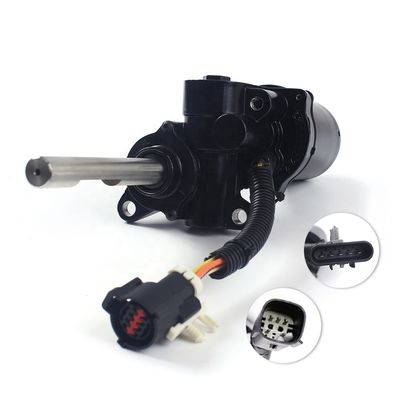

Modern custom car suv 12v waterproof left right electric dc side step pedal motors auto power running board motor

2 Pieces
MOQ
Modern custom car suv 12v waterproof left right electric dc side step pedal motors auto power running board motor
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Model: ESCALADE, AVALANCHE, SILVERADO 1500, explorer, F-150, Navigator
Year: 2009, 2007-2016, 2009-2012, 2009-2013, 2009-2010, 2007-2008, 2007-2010, 2007-2009, 2007-2008, 2007-2012, 2007-2013, 2009-2013, 2010-2013, 2007-2016, 2009-2012, 2007-2008, 2010, 2011-2012, 2011-2013, 2007-2010, 2009-2010, 2007-, 2010-2014, 2011-2012, 2011,
Model Number: MYES-RBM5-110-33-36(L)
Car Fitment: Cadillac, Ford, Chevrolet, LINCOLN
Design Style: modern
Type: Step Bar
Size: 31*11*11cm
Material: 304 stainless steel+Aluminum+iron
The rated voltage: DC 12V
No-load current: ≤2.5A
Rated power: 80W
Frequency: 50/60HZ
Insulation class: F class
Noise: ≤60dB
OEM&ODM: YES
Protection grade: IPX7
Shaft length (slot width): 110mm(33mm)
Informação básica
Model Number: ESCALADE, AVALANCHE, SILVERADO 1500, explorer, F-150, Navigator, MYES-RBM5-110-33-36(L)
Condições de Pagamento e Envio
Packaging Details: 1 PCS/bag/box 10 / box
Supply Ability: 40000 Set/Sets per Month
Descrição de produto
Products Description
Electric running board motors power the automatic pedals of certain Pickup trucks and SUV. The pedal motors can restore the normal operation of the vehicle power pedal. With the passage of time, the pedal cannot be dropped and stowed normally. This is a normal phenomenon. You can solve this problem by replacing the electric pedal motor. Our motors of auto parts are useful for Land Rover, Lincoln, Ford, Cadillac, Chevrolet's electric running board and so on. You only need to provide the specific auto model and OE part number, shaft length and plug style, we accept OEM/ODM service.
Side Step Motor  Advantage:
1.304 stainless steel shaft prevents rust
2.Anti-pinch function to prevent accidental pinching or damage to the pedal
3.150,000 times of opening and closing tests,long service life
4.Precise control, automatic response, ultra-low noise
5.Large torque, rated torque up to 50NM, to meet the demand.
6.OE:Left-9L7Z16A507/Right-9L7Z16A506, Left - AL3Z16A507A/Right - AL3Z16A506A, Left-19303235/Right-19303236

Scope of application

Suitable for TB1662 series ---automotive pedal motor.

Test conditions

1. All tests must be carried out in the range of standard temperature and humidity (temperature: 20±65℃, humidity: 65±5%);
If there is no dispute between the two parties, the test can be carried out under normal temperature and humidity(temperature:5-35 ℃, humidity: 45-75%).
2. high and low temperature test, according to low temperature -30℃, high temperature +80℃,humidity 75% test method and standard according “ to Implementation of Q /FSJS002-2018 Automotive Pedal Motor Technical Standard”.

Environmental characteristics

1. Operating temperature and humidity range: temperature: -20℃~ +65℃; Humidity: 45%~75%.
2. Storage temperature and humidity range: temperature: -10~40℃, humidity: 75%MAX.
Item
Value
Rated voltage
DC 12V
No-load current
≤ 2.5A
Rated power
80W
Frequency
50/60Hz
Noise
≤ 60 dB
Load 5Nm
Speed 14 ±1 RPM; Current ≤ 5.0A
Load 20Nm
Speed 8 ±1 RPM; Current ≤ 12A
Output shaft speed
15 RPM ± 1RPM
Braking torque
Torque ≥ 50 N.m; Current≤28A

Output shaft steering
The motor on the left：counterclockwise
The motor on the right：clockwise
Insulation class
F class
Protection grade
IP67
Product Details
Number
Output shaft series
L1
L2
L3
Shaft diameter
Note
MYES-RBM5-30-M6-16.5
86 series
30
M6
16.5
16
DC 12V,80W
MYES-RBM5-110-33-36
166 series
110
33
36
16
DC 12V,80W
MYES-RBM5-110-38-37
166 series
110
38
37
16
DC 12V,80W
MYES-RBM5-110-43-26.5
166 series
110
43
26.5
16
DC 12V,80W
MYES-RBM5-120-43-28
176 series
120
43
28
16
DC 12V,80W
MYES-RBM5-120-53-27.5
176 series
120
53
27.5
16
DC 12V,80W
MYES-RBM5-135-30-34.5
191 series
135
30
34.5
16
DC 12V,80W
MYES-RBM5-148-34-30
204 series
148
34
30
16
DC 12V,80W
NOTE
1. Output shaft specification and shaft steering can be customized according to customer requirements
2. The motor wiring plug-in can be customized according to customer requirements.
