QS 205 50H V3 3000w electric bike motor 80km/h extra type
QS / Quan Shun, 205/50H V3 "Extra Type"
The QS motor company has also decided to begin selling their E-motorcycle hubs with axles that that have been modified to fit a bicycle.
Their motor phase wires are thicker than the other motors listed, and their axle design is stronger.
The stator width is 50mm, but also…the stator-teeth slots are deeper for more copper-fill, and all of this adds up to a motor that can take more watts.
Said by "spinning magnets" in electricbike.com. https://www.electricbike.com/large-hot-rod-hubmotors/
QS Motor Specification (e.g. 3000W 205 50H V3)

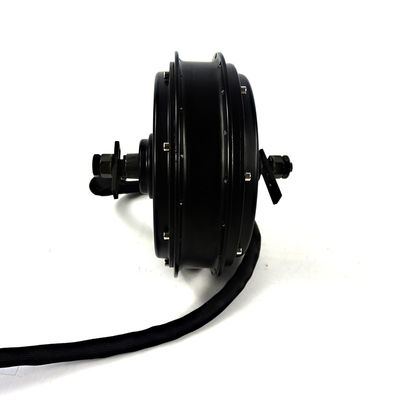

Item: QS MOTOR 3000W 205 50H V3 BLDC Electric Bike Bicycle Spoke Hub Motor
· Motor Type: BLDC Permanent Magnet Outer Rotor In-Wheel Hub Motor With Hall Sensor
· Brand: QS Motor,QSMOTOR
· Motor Design: Double axle without rim (not integrated), 36 spoke holes, OD 4.2mm
· Matching Rim size: 24inch, 26inch E-Bike Wheel, 17inch, 18inch, 19inch moped wheel.
· Magnet Height: 50mm, 16 pole pairs
· Stator: Aluminmum Core
· Rated Power: 3000W (could be 14000W peak in few seconds)
· Rated Voltage: 72V as default (48V-96V, optional)
· Speed: 80KPH as default (24-120KPH, optional)
· kV: 6.3/7.3/8.1/8.3/9.0(as default)/10.6/11.4/13.3/14.3/16.3/17.7 etc.
· Max Torque: approx 182N.m
· Max Efficiency: 86-91%
· Continuous Battery Current: 52A (72V)
· Peak Battery Current: 104A (72V)
· Suggest Peak Phase Current: 196-245A (depend on the kV)
· Thermic Probe: KTY83/122 (as default, optional)
· Working Temperature: 70-120℃ , peak 150 ℃
· Brake type: Bike Disc brake, PCD6*44mm(as default)
· Drop-outs/Rear Fork Width for installation: 150-154mm
· 14mm english thread length for single/3 speed freewheel
· 10mm axle flats
· Dual Hall Set with waterproof connectors
· 10mm² Cross Section of Phase Wire (not include insulation layer)
· Hall Sensor Phasing angle: 120 degree
· Waterproof Grade: IP54
· Color: Black (as default), White/Luminous (extra $5.0)
· N.W./G.W.: 12.5kg/14.0kg Package Dimension: 34cm*34cm*33cm/piece
Btw., someone may call it 5000W or 6000W rated hub motor, it's the same.
PS. Temp Sensor Options: KTY84/130, KTY83/122, 10K@25C NTC(model MF58-103F3950).
QS Motor could work 120 ℃ in half an hour without damage.
Suggestion (Setting of Controller)
When it's 130 ℃ inside of motor (in 30s), the current should be limited 50%.
When it's 150 ℃, the controller shut down. When it drop down to 110℃, the controller work again.
Net Weight: 12.75kg, Gross Weight 14.5kg (with single-speed freewheel, in carton package)
Package: 34cmX34cmX33cm
Valid time: 30 days
Producing Time:
For 24X5T Widing (Standard axle), there are 10pcs motors in store, the lead time could be 1-2 working days after receiving payment.
For other winding, 10-12 working days after receiving payment(6 working days per week).
Btw., we are going to develop 205 E-bike Hub Motor, 135mm dropouts (more than 205 28H).
Do you have any suggestion on the magnet height, power, speed, voltage, suitable freewheels?
For kV list.
|
For Drawing.
Standard Drawing
QS support Customized, the axle could be customized accordingly (the cost and delivery time will increase).
For example,
Customized axle, 155mm dropout, USD 8.0/piece more, take 7-10 days more for customized axle.
Temp Sensor Options: KTY84/130, KTY83/122, 10K@25C NTC(model MF58-103F3950)
Note: QS Motor could work 120 ℃ in half an hour without damage.
Conservative Suggestion (Setting of Controller)
When it's 130 ℃ inside of motor (in 30s), the current should be limited 50%.
When it's 150 ℃, the controller shut down.
When it drop down to 110℃, the controller work again.
Suggestion Controller
Most Customer choose Adaptto MAX-E controller, but I have little understanding of the controller.
Some customer ask me about the correct setting, I will try my best to get it.
Meanwhile, could you please help me out and advise some information on this?
Buying Guides
How to find suitable hub motor
To customized a suitable motor, could you pls. inform below points:
· 1.E-scooter, E-tricycle or E-car, tire model?
· 2.Volt and wattage of motor, Speed(kV), and torque/climb angle ?
· 3.Your vehicle weight and loading weight?
· 4.Lithium or lead-acid Battery?
We could suggest most suitable motor accordingly, thank you for your cooperation.
PS. To calculate the speed, v(km/h)=n(r/min)*2rπ(m)*60/1000, n=load RPM, r=tire radius.
For speed less than 100KPH, consider the Windage Resistance & Rolling resistance.
the load RPM is appr 0.9 * no-load RPM. v(km/h)=0.9*n(r/min)*2rπ(m)*60/1000
For over 100KPH, V=0.85*RPM*2rπ*60/1000
